Compact and lightweight, the AUXSOL ASN series is the perfect choice for residential installations. The ASN series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.

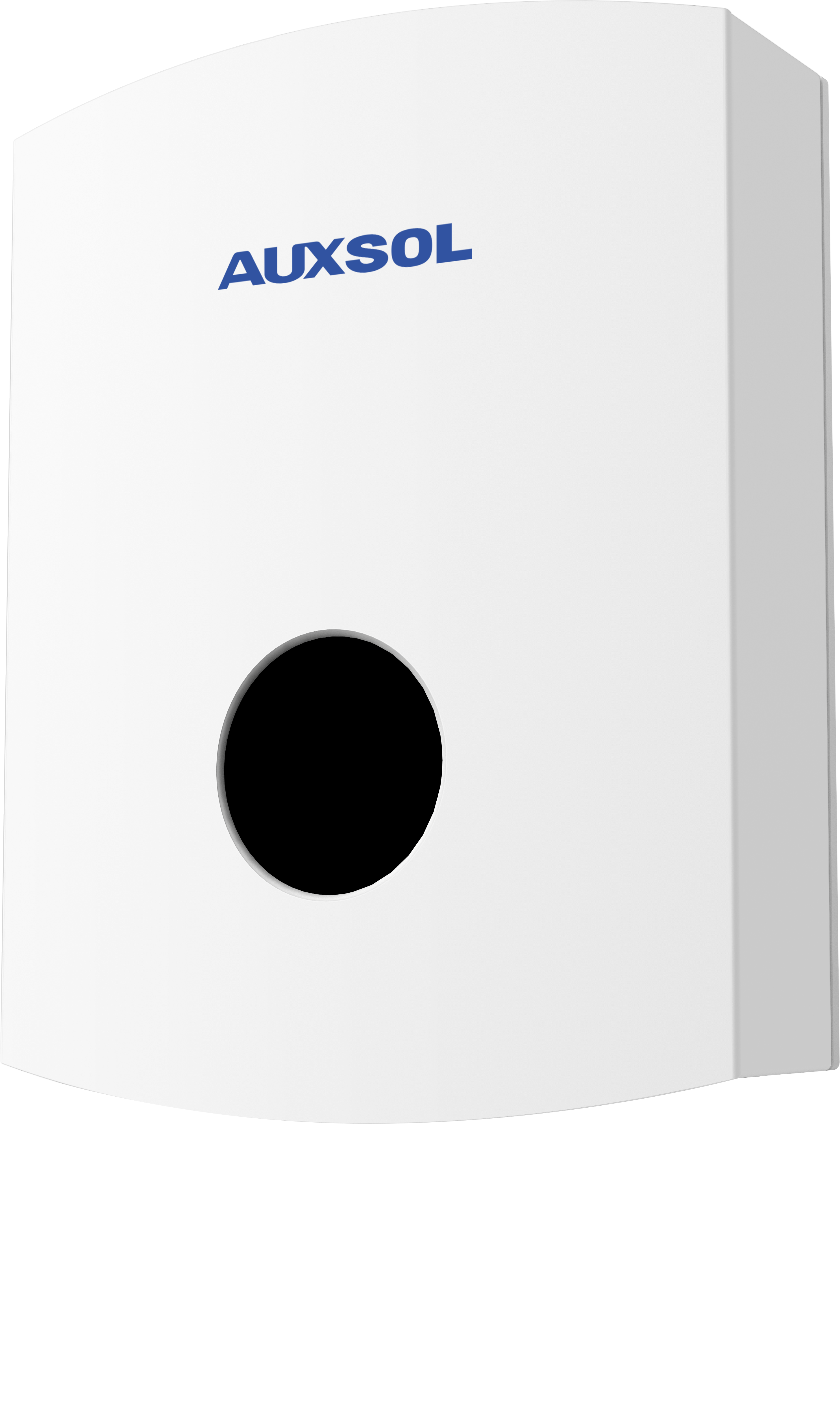

SL右轴视图.png)

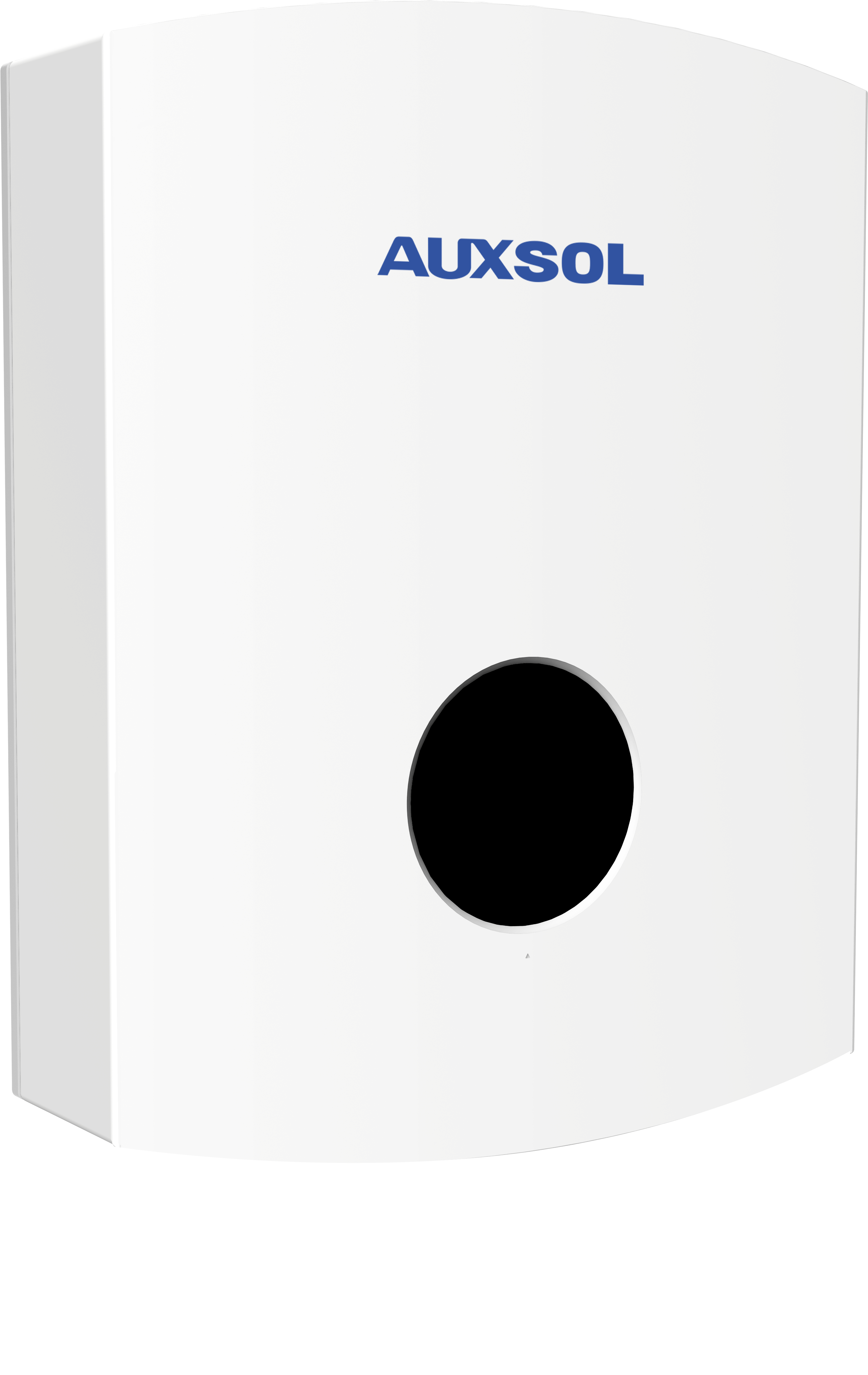

SL左轴视图.png)
80V start-up voltage
Wide range of MPPT voltage
Max. 150% DC/AC ratio
Max. efficiency 97.7%
Optional AFCI function
Optional anti-backflow
| Technical Data | ASN-3.6SL-PLUS | ASN-4SL-PLUS | ASN-4.6SL-PLUS | ASN-5SL-PLUS | ASN-6SL-PLUS |
|---|---|---|---|---|---|
|
Start-up voltage |
80V |
||||
|
MPPT voltage range |
80-520V |
||||
|
Max. input current |
16A/16A |
||||
|
MPPT number |
2 |
||||
|
Max. input strings |
2 |
||||
|
Max. output power |
3.96KW |
4KW |
5KW |
5.5KW |
6KW |
|
Rated grid output current |
16.4A |
18.2A |
20.9A |
22.7A |
27.3A |
|
Max. output current |
18A |
20A |
23A |
25A |
27.3A |
